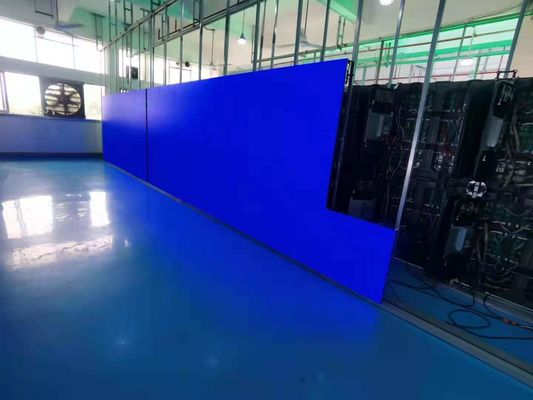

P2.5 640Pro Die-Case Aluminum Cabinet SMD 2020 1920hz Indoor LED Display IP33 Shenzhen Factory
Product Details:
| Place of Origin: | China |
| Brand Name: | SMART LED |
| Certification: | CE,ROSH,FCC,EMC |
| Model Number: | P2.5 LED Display 640*640mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | no requirement |
|---|---|
| Packaging Details: | Wooden package |
| Delivery Time: | 15 Days (Custom-made) |
| Payment Terms: | T/T |
| Supply Ability: | no requirement |
|
Detail Information |
|||
| Item: | P2.5 LED Display 640*640mm | LED Lamp: | SMD 2020 |
|---|---|---|---|
| Dot Density: | 160000 Led | Driving Method: | 1/32 Scan |
| Cabinet Size: | 640mmx640mm | Resolution: | 256x256 |
| Protective Grade: | IP33 | Refresh Rate: | >1920Hz |
| Brightness: | 650mcd | Cabinet Materials: | Aluminum |
| High Light: | Aluminum Cabinet P2.5 Indoor LED Display,IP33 P2.5 Indoor LED Display,Aluminum Cabinet P2.5 LED Screen |
||
Product Description
P2.5 Indoor SMD 2020 HD LED TV Video Screen IP33 Show Indoor LED Video Wall
P2.5 HD LED Display Indoor Size: 640*640MM
Applications
Product Features
* Cabinet Install to the wall,Module magnet service
* Used LED Processor can open 2 windows on the LED Display.
* Power supply and Controller service from the front side.
What we can do
* Project advise,Make the easy project design,easy for install and service
* Free on-line support
* We will send the setting file send with the goods. And also we will keep the Project file.
| PH2.5mm LED SMD Indoor Display Specification and Quotation | ||||||
| Technicial Parameters | ||||||
| LED Parameters | ||||||
| No. | Item | Luminous Intensity | Viewing Angle(H/V) | Wavelength | Test Condition | |
| 1 | Red LED (Epistar DICE) | 800-1000 | 140º/120º | 620-630nm | 25℃,20mA | |
| 2 | Green LED(Epistar DICE) | 1300~1500 | 140º/120º | 520-535nm | 25℃,20mA | |
| 3 | Blue LED ( Epistar DICE) | 250~500 | 140º/120º | 465-475nm | 25℃,20mA | |
| Module Specifications | ||||||
| 1 | Pixel Pitch | 2.5mm | |
|||
| 2 | Pixel Configuration | 3-in-1, SMD 2020 | ||||
| 3 | Module Resolution | 128X 64 | ||||
| 4 | Module Pixles | 8192 | ||||
| 5 | Module Size | 320mm X 160mm | ||||
| 8 | Hub connection | HUB75E | ||||
| Cabinet Specification | ||||||
| 1 | Cabinet Size(WXHXD) | 640mmLx640mmHx100mmD | |
|||
| 2 | Cabinet Resolution | 256*256 pixels | ||||
| 3 | Module Quanity | 8 pcs | ||||
| 4 | Cabinet Pixels | 65536 dots | ||||
| 5 | Pixel Density | 160000 dots/m2 | ||||
| 6 | Average Power Consumption | 100W/cabinet | ||||
| 7 | Max. Power Consumption | 300W/cabinet | ||||
| 8 | Material | Alum Die-case | ||||
| 9 | Cabinet Weight | 10 KG | ||||
| 10 | Product process | Cabinet Fixed | ||||
| Screen Parameters | ||||||
| 1 | Whole LED Display Size | 6.4m*2.56m | |
|||
| 1 | Whole Display Resolution | 2560*1024 | ||||
| 1 | Cabinet quantity | 10pcs*4pcs =40pcs | ||||
| 2 | Brightness | ≥800 mcd/㎡ | ||||
| 3 | Brightness(Max./Min.) | 1.2:1 | ||||
| 4 | Driving Method | 1/32 Scan | ||||
| 5 | View Angle | Horizontal 140° Vertical 120° | ||||
| 6 | Optimal Viewing Distance | 5M | ||||
| 7 | Brightness Control | Red,Green and Blue 256 Grade/Each | ||||
| 8 | Refresh rate | >1920hz | ||||
| 9 | Frame Frequency | 60Hz | ||||
| 10 | Input Voltage | AC220V/50Hz or AC110V/60Hz | ||||
| 11 | Defects Rate | ≤0.00001 | ||||
| 12 | Power Consumption | Max.:650W/㎡ Average: 200W/㎡ | ||||
| 13 | Screen weight | ≤25kg/㎡ | ||||
| 14 | MTBF | >10,000 hours | ||||
| 15 | Life span | ≥100,000 hours | ||||
| 16 | Module Display Brightness Uniformity | <2% | ||||
| 17 | Earth Leakage Current | <3mA | ||||
| 18 | Protective Grade | IP33 | ||||
| 19 | Temperature-operating | ﹣25℃～45℃ | ||||
| 20 | Humidity-operating | 10%～95% | ||||
| 21 | Controlling system | HD System | ||||
| 22 | Operating System | WINDOWS | ||||
| |
||||||
| |
||||||
| Control system | ||||||
| HD-Player software HD-VP620 | ||||||
|
1)Integrated video processing, sending card function, 6 gigabit network port output, total pixels 3.9 million points； |
|||||
| LED processor connection | HD-VP620 | |||||
