Outdoor Sign Board Front Open P10 Large Size LED Digital Signage Display Multi Screen Commercial

Outdoor Sign Board Front Open P10 Large Size LED Digital Signage Display Multi Screen Commercial

Product Details:

Place of Origin: China
Brand Name: SMART LED
Certification: CE,ROSH,FCC,EMC
Model Number: P10 1700*900 Sign board

Payment & Shipping Terms:

Minimum Order Quantity: no requirement
Packaging Details: Wooden package
Delivery Time: 15Days
Payment Terms: T/T, Western Union
Supply Ability: no requirement
Get Best Price Contact Now

Detail Information

Item: P10 SMD Outdoor Full Color LED Lamp: SMD 3535
Cabinet Size: 1700mm*900mm Dricing Method: 1/2 Scan
Cabinet Resolution: 160*80 Cabinet Module: 5*5
Protective Grade: IP65 Refresh Rate: >1920Hz
Brightness: 6500mcd Cabint Materials: Iron
High Light:

P10 Large LED Digital Signage Display

,

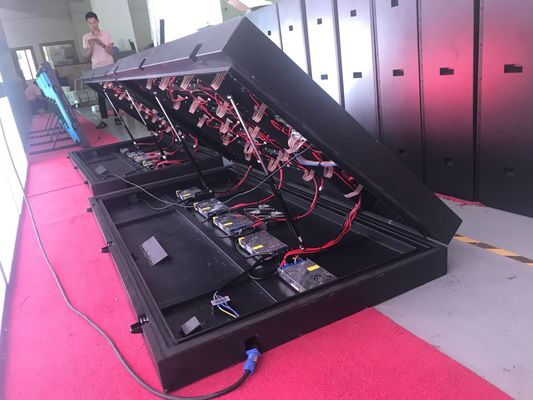

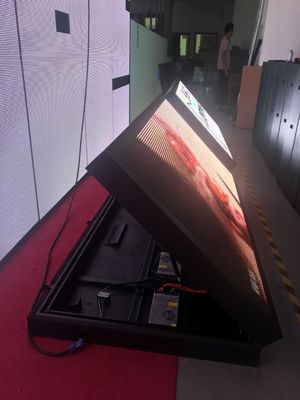

Outdoor Sign Board Front Open

,

P10 LED Outdoor Sign Board

Product Description

Outdoor LED Sign board Watter proof P10 1700mm*900mm Wifi Controller



Applications

P3 Indoor Display HD-LED Video screen 1920Hz Magnet Install Size:5.184m*2.304m



Product Features

* Cabinet Install to the wall,Module magnet service

* Used LED Processor can open 2 windows on the LED Display.

* Power supply and Controller service from the front side.



What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.







P2.5 Indoor HD-LED Video screen Die-case cabinet Magnet servicePH4mm LED SMD Outdoor Display Specification
Technicial Parameters
LED Parameters
No. Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
1 Red LED (Epistar DICE) 800-1000 140º/120º 620-630nm 25℃,20mA
2 Green LED(Epistar DICE) 1300~1500 140º/120º 520-535nm 25℃,20mA
3 Blue LED (Epistar DICE) 250~500 140º/120º 465-475nm 25℃,20mA
Module Specifications
1 Pixel Pitch 4mm               Outdoor Sign Board Front Open P10 Large Size LED Digital Signage Display Multi Screen Commercial 2
2 Pixel Configuration 3-in-1, SMD 1921
3 Module Resolution 80dots X 40dots
4 Module Pixles 3200dots
5 Module Size 320mm X 160mm
6 Module power 5V8.5A 42.5W
Cabinet Specification
1 Cabinet Size(WXHXD) 1700mmLx900mmHx170mmD





Outdoor Sign Board Front Open P10 Large Size LED Digital Signage Display Multi Screen Commercial 3

2 Cabinet Resolution 160x80 pixels
3 Module Quanity 25 pcs
4 Cabinet Pixels 12800
5 Pixel Density 10000 dots/m2
6 Average Power Consumption 450W/cabinet
7 Max. Power Consumption 1500W/cabinet
8 Material Iron
9 Cabinet Weight 35KG
10 Protective Grade IP65
Screen Parameters
1 Whole screen size 4.8mx1.92m = 9.2sqm





Outdoor Sign Board Front Open P10 Large Size LED Digital Signage Display Multi Screen Commercial 4Outdoor Sign Board Front Open P10 Large Size LED Digital Signage Display Multi Screen Commercial 5

2 LED Display piexl 1200 * 480
3 Cabinet quantity 5pcs*2pcs =10pcs
4 Brightness ≥6500 mcd/㎡
5 Brightness(Max./Min.) 1.2:1
6 Driving Method 1/10 Scan
7 View Angle Horizontal 140° Vertical 120°
8 Optimal Viewing Distance 5M
9 Brightness Control Red,Green and Blue 256 Grade/Each
10 Refresh rate >1920HZ
11 Frame Frequency 60Hz
12 Input Voltage AC220V/50Hz or AC110V/60Hz
13 Defects Rate ≤0.00001
14 Power Consumption Max.: 800W/㎡
Average: 300W/㎡
15 Screen weight ≤35kg/㎡
16 MTBF >10,000 hours
17 Life span ≥100,000 hours
18 Module Display Brightness Uniformity <2%
19 Earth Leakage Current <3mA
20 Protective Grade IP65
21 Temperature-operating ﹣25℃~45℃
22 Humidity-operating 10%~95%
23 Controlling system HD-Player Wifi
24 Operating System WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included.
2. 30% Down Payment before Production, Balance before shippment
3. Lead time:15 working Days against down Payment
4. Two Years Maintain Replacement free.
