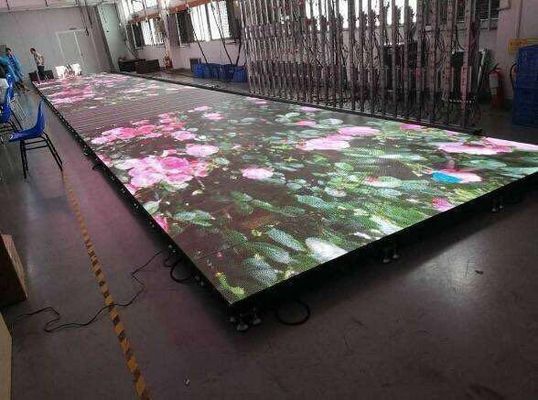

Stage Display P4.81 High Strength LED Dance Floor Panels 500mmx1000mm IP54 Shenzhen Factory

Stage Display P4.81 High Strength LED Dance Floor Panels 500mmx1000mm IP54 Shenzhen Factory

Product Details:

Place of Origin: China
Brand Name: SMART LED
Certification: CE,ROSH,FCC,EMC
Model Number: P4.81 LED Display Floor

Payment & Shipping Terms:

Minimum Order Quantity: no requirement
Packaging Details: Wooden package,
Delivery Time: 15 Days
Payment Terms: T/T
Supply Ability: no requirement
Get Best Price Contact Now

Detail Information

Item: P4.81 LED Display Floor LED Lamp: SMD 1921
Dot Density: 43264 Led Driving Method: 1/13 Scan
Cabinet Size: 500mmx1000mm Resolution: 104x208
Protective Grade: IP65 Refresh Rate: >1920Hz
Brightness: 4500mcd Cabinet Materials: Iron
High Light:

led screen floor

,

led floor panels

,

High Strength LED Dance Floor Panels

Product Description

Stage Display P4.81 High Strength LED Dance Floor Panels 500mmx1000mm IP54 Shenzhen Factory

Stage Display P4.81 High Strength LED Dance Floor Panels 500mmx1000mm IP54 Shenzhen Factory 0

P4.81 LED Display Floor 500mmx1000mm IP65 LED Dance floor Load bearing:1000kg



Applications

P3 Indoor Display HD-LED Video screen 1920Hz Magnet Install Size:5.184m*2.304m



Product Features

* Cabinet Install to the wall,Module magnet service

* Used LED Processor can open 2 windows on the LED Display.

* Power supply and Controller service from the front side.



What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.







P2.5 Indoor HD-LED Video screen Die-case cabinet Magnet servicePH4.81mm LED Display Floor Specification
Technicial Parameters
LED Parameters
No. Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
1 Red LED (Epistar DICE) 800-1000 140º/120º 620-630nm 25℃,20mA
2 Green LED(Epistar DICE) 1300~1500 140º/120º 520-535nm 25℃,20mA
3 Blue LED (Epistar DICE) 250~500 140º/120º 465-475nm 25℃,20mA
Module Specifications
1 Pixel Pitch 4.81mm    Stage Display P4.81 High Strength LED Dance Floor Panels 500mmx1000mm IP54 Shenzhen Factory 3
2 Pixel Configuration 3-in-1, SMD 1921
3 Module Resolution 52dots X 52dots
4 Module Pixles 2704dots
5 Module Size 250mm X 250mm
6 Module power 5V8.5A 42.5W
Cabinet Specification
1 Cabinet Size(WXHXD) 500mmLx1000mmHx100mmD           Stage Display P4.81 High Strength LED Dance Floor Panels 500mmx1000mm IP54 Shenzhen Factory 4
2 Cabinet Resolution 104x208 pixels
3 Module Quanity 8 pcs
4 Cabinet Pixels 21632 dots
5 Pixel Density 43264 dots/m2
6 Average Power Consumption 100W/cabinet
7 Max. Power Consumption 400W/cabinet
8 Material Iron
9 Cabinet Weight 23 KG
10 Protective Grade IP 65
Screen Parameters
1 Whole screen size 7.04mx1.92m = 13.5 sqm

 Stage Display P4.81 High Strength LED Dance Floor Panels 500mmx1000mm IP54 Shenzhen Factory 5


 Stage Display P4.81 High Strength LED Dance Floor Panels 500mmx1000mm IP54 Shenzhen Factory 6                                                                            Stage Display P4.81 High Strength LED Dance Floor Panels 500mmx1000mm IP54 Shenzhen Factory 7

2 LED Display piexl 2816 * 768
2 Cabinet quantity 11pcs*4pcs =44 pcs
3 Brightness ≥4500 mcd/㎡
4 Brightness(Max./Min.) 1.2:1
5 Driving Method 1/13 Scan
6 View Angle Horizontal 140° Vertical 120°
7 Optimal Viewing Distance 6M
8 Brightness Control Red,Green and Blue 256 Grade/Each
9 Refresh rate >1920HZ
10 Frame Frequency 60Hz
11 Input Voltage AC220V/50Hz or AC110V/60Hz
12 Defects Rate ≤0.00001
13 Power Consumption Max.: 800W/㎡
Average: 300W/㎡
14 Screen weight ≤35kg/㎡
15 MTBF >10,000 hours
16 Life span ≥100,000 hours
17 Module Display Brightness Uniformity <2%
18 Earth Leakage Current <3mA
19 Protective Grade IP33
20 Temperature-operating ﹣25℃~45℃
21 Humidity-operating 10%~95%
22 Controlling system LINSN
23 Operating System WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included.
2. 30% Down Payment before Production, Balance before shippment
3. Lead time:15 working Days against down Payment
4. Two Years Maintain Replacement free.



Stage Display P4.81 High Strength LED Dance Floor Panels 500mmx1000mm IP54 Shenzhen Factory 8



Load-bearing :1000kg

Stage Display P4.81 High Strength LED Dance Floor Panels 500mmx1000mm IP54 Shenzhen Factory 9









LED Ball Package

Stage Display P4.81 High Strength LED Dance Floor Panels 500mmx1000mm IP54 Shenzhen Factory 10



Packaging and shipping



Stage Display P4.81 High Strength LED Dance Floor Panels 500mmx1000mm IP54 Shenzhen Factory 11
