Magnet Install Big Led Display Board 1/32 Scan Driving Easy Operated Wall Mountable Shenzhen Factory
Product Details:
| Place of Origin: | China |
| Brand Name: | SMART LED |
| Certification: | CE,ROSH,FCC |
| Model Number: | P3 Indoor LED Display |
Payment & Shipping Terms:
| Minimum Order Quantity: | no requirement |
|---|---|
| Packaging Details: | Wooden package, |
| Delivery Time: | 12 Days |
| Payment Terms: | T/T |
| Supply Ability: | no requirement |
|
Detail Information |
|||
| Item: | P3 SMD Indoor Full Color | LED Lamp: | SMD 2020 |
|---|---|---|---|
| Dot Density: | 111111 Led | Driving Method:: | 1/32 Scan |
| Module Size: | 192mm*192mm | Module Resolution: | 64*64 |
| Protective Grade: | IP33 | Refresh Rate: | >1920Hz |
| Brightness: | 1000mcd | Project Location: | Guangzhou China |
| Highlight: | led video wall panels,led wall display screen,Magnet Install Big Led Display Board |
||
Product Description
P3 Indoor Display HD-LED Video screen 1920Hz Magnet Install Size:5.184m*2.304m
Applications
Product Features

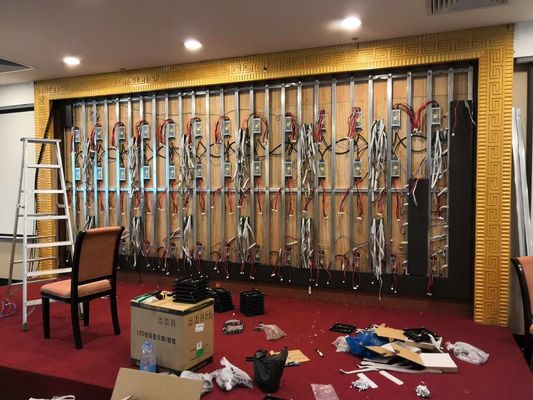

* Cabinet Install to the wall,Module magnet service
* Used LED Processor can open 2 windows on the LED Display.
* Power supply and Controller service from the front side.
What we can do
* Project advise,Make the easy project design,easy for install and service
* Free on-line support
* We will send the setting file send with the goods. And also we will keep the Project file.
| PH3mm LED SMD Indoor Display Specification |
||||||
| Technicial Parameters | ||||||
| LED Parameters | ||||||
| No. | Item | Luminous Intensity | Viewing Angle(H/V) | Wavelength | Test Condition | |
| 1 | Red LED (Epistar DICE) | 800-1000 | 140º/120º | 620-630nm | 25℃,20mA | |
| 2 | Green LED(Epistar DICE) | 1300~1500 | 140º/120º | 520-535nm | 25℃,20mA | |
| 3 | Blue LED (Epistar DICE) | 250~500 | 140º/120º | 465-475nm | 25℃,20mA | |
| Module Specifications | ||||||
| 1 | Pixel Pitch | 3mm | |
|||
| 2 | Pixel Configuration | 3-in-1, SMD 2020 | ||||
| 3 | Module Resolution | 128dots X 64dots | ||||
| 4 | Module Pixles | 8192dots | ||||
| 5 | Module Size | 384mm X 192mm | ||||
| 6 | Module power | 5V7.2A 36W | ||||
| Screen Parameters | ||||||
| 1 | Whole screen size | 7.68mx2.88m = 22.11 sqm |
|
|||
| 2 | LED Display piexl | 2560 * 960 | ||||
| 2 | Module quantity | 20pcs*15pcs =300 pcs | ||||
| 3 | Brightness | ≥1000 mcd/㎡ | ||||
| 4 | Brightness(Max./Min.) | 1.2:1 | ||||
| 5 | Driving Method | 1/32 constant current | ||||
| 6 | View Angle | Horizontal 140° Vertical 120° | ||||
| 7 | Optimal Viewing Distance | 3M | ||||
| 8 | Brightness Control | Red,Green and Blue 256 Grade/Each | ||||
| 9 | Refresh rate | >1920HZ | ||||
| 10 | Frame Frequency | 60Hz | ||||
| 11 | Input Voltage | AC220V/50Hz or AC110V/60Hz | ||||
| 12 | Defects Rate | ≤0.00001 | ||||
| 13 | Power Consumption | Max.: 800W/㎡ Average: 300W/㎡ |
||||
| 14 | Screen weight | ≤20kg/㎡ | ||||
| 15 | MTBF | >10,000 hours | ||||
| 16 | Life span | ≥100,000 hours | ||||
| 17 | Module Display Brightness Uniformity | <2% | ||||
| 18 | Earth Leakage Current | <3mA | ||||
| 19 | Protective Grade | IP33 | ||||
| 20 | Temperature-operating | ﹣25℃～45℃ | ||||
| 21 | Humidity-operating | 10%～95% | ||||
| 22 | Controlling system | LINSN | ||||
| 23 | Operating System | WIN7/WIN8/WIN10 | ||||
| Remarks: | ||||||
| 1. Software and User’s manual in English included. 2. 30% Down Payment before Production, Balance before shippment 3. Lead time:15 working Days against down Payment 4. Two Years Maintain Replacement free. |
||||||
