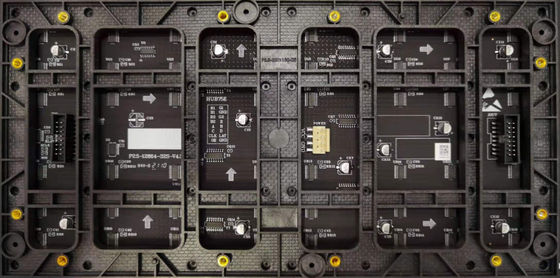

2020 SMD LED Display Module
Product Details:
Place of Origin: | China |
Brand Name: | Smart LED |
Certification: | CE,ROSH,FCC,EMC |
Model Number: | P2.5 |
Payment & Shipping Terms:
Minimum Order Quantity: | no requirement |
---|---|
Packaging Details: | Paper box package |
Delivery Time: | 2-3 Days |
Payment Terms: | T/T |
Supply Ability: | no requirement |
Detail Information |
|||
Item: | P2.5 LED Module | LED Lamp: | SMD 2020 |
---|---|---|---|
Dot Density: | 160000 | Resolution: | 128*64 |
Protective Grade: | IP33 | Refresh Rate: | 1920Hz |
Brightness: | 650mcd | Scan Mode: | 1/32 Scan |
Module Weight: | 300g | Guarantee: | 2Years |
High Light: | 2020 SMD LED Display Module,3in1 RGB SMD LED Display Module,P2.5 RGB LED Display Module |
Product Description
P2.5 3in1 RGB 2020 SMD LED Display Module High Performance CE ROSH Certificated
shopping mall advertisement RGB SMD LED module 1/16 Scan Type 40000 Pixel / ㎡

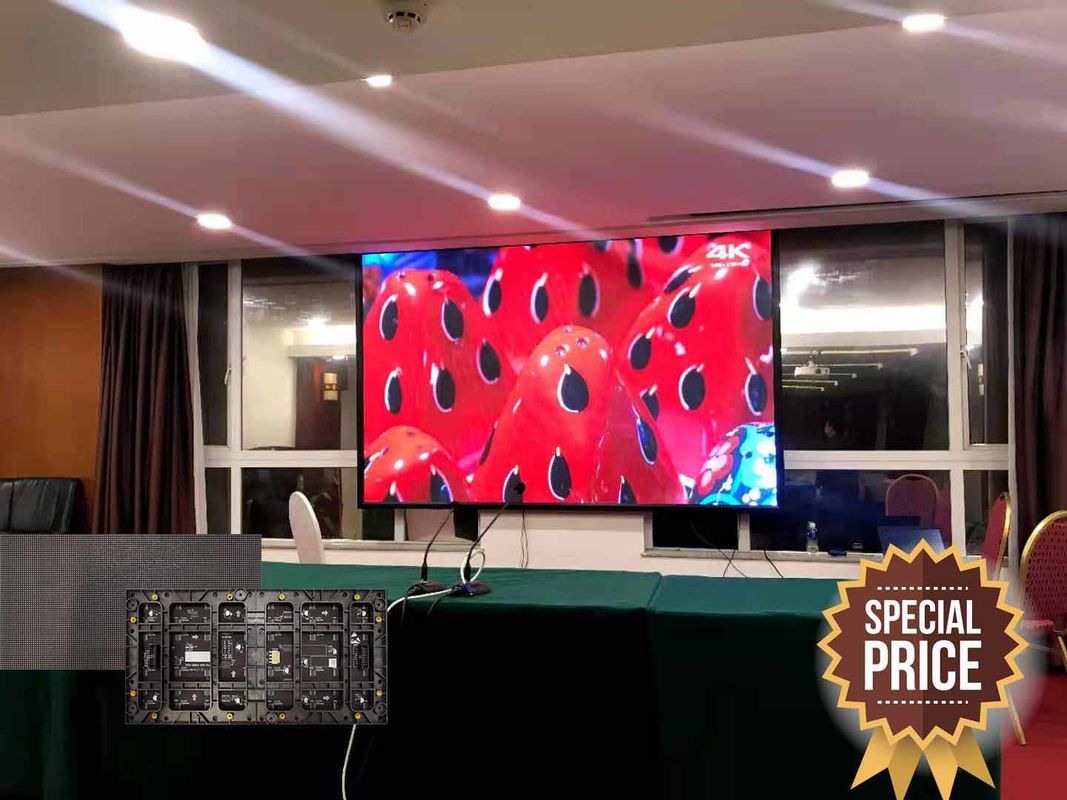

Applications
Z
Product Features
* Cabinet Install to the wall,Module magnet service
* Used LED Processor can open 2 windows on the LED Display.
* Power supply and Controller service from the front side.
What we can do
* Project advise,Make the easy project design,easy for install and service
* Free on-line support
* We will send the setting file send with the goods. And also we will keep the Project file.
SPECIFICATION
Model.PN NO: P2.5 SMD INDOOR MODULE-320*160MM
REV NO:V1.0
Description:
■ 320*160mm SMD Indoor module
■ Lamp:1515 KP14025M-N00-S550
■ Driver IC:ICN2037/FM6124
Shenzhen LCS Electronic Co.,Ltd | ||
Technology department |
Quality department |
Marketing department |

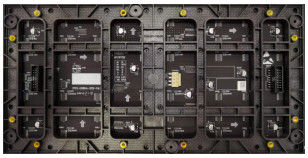

P2.5 SMD indoor
Description:
Size: 320mm*160mm
Resolution: 128dots*64dots
Driving Method: 1/32 Scan
Module brightness:800mcd
Display Fresh requency: 1920Hz
Working environment: Indoor
Parameter:
Pixel pitch | 2.5 mm |
LED Lamp type | 3in1RGB 1515 |
Module size | 320mmx160mm |
Pixels Density | 160000 pixel/㎡ |
Brightness | 800cd/㎡ |
Scan type | 1/32 Scan |
Frame Rata | 60HZ |
Maximum consumption | 24W |
Power input | 5V |
Led module weight | 9.18kg/㎡ |
Led display weight(Die-case) | 28kg/㎡ |
Working Temp | -20℃ to +60℃ |
Horizontal View Angel | Horizontal 140° Vertical 120° |
IP grade | IP33 |
Hub connection | HUB75E |
Dimensions:
Package:
● Box size:580*370*400mm
● Package quantity:40PCS
● Weight:22Kg
Packaging and shipping
Packing:1.Paper box packing and Water proof packing
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
