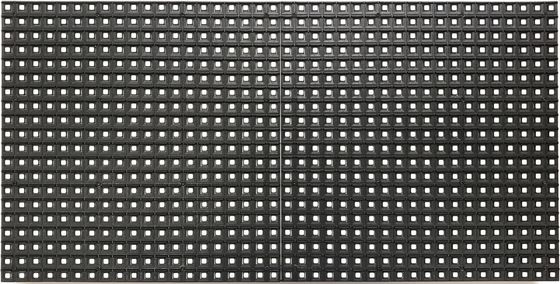

Outdoor P8 320mm*160mm SMD LED Display Module Easy Installable Full HD LED Video Board Shenzhen Factory

Outdoor P8 320mm*160mm SMD LED Display Module Easy Installable Full HD LED Video Board Shenzhen Factory

Product Details:

Place of Origin: China
Brand Name: Smart LED
Certification: CE,ROSH,FCC,EMC
Model Number: P8

Payment & Shipping Terms:

Minimum Order Quantity: no requirement
Packaging Details: Paper box package
Delivery Time: 2-3 Days
Payment Terms: T/T
Supply Ability: no requirement
Get Best Price Contact Now

Detail Information

Item: P8 LED Module LED Lamp: SMD 2727
Module Size: 320mm*160mm Module Resolution: 40*20
Protective Grade: IP65 Refresh Rate: 1920Hz
Brightness: 5000mcd Driving Method: 1/5 Scan
Module Weight: 500g Guarantee: 2Years
High Light:

P8 SMD LED Display Module

,

Outdoor SMD LED Display Module

,

Full HD SMD LED Video Board

Product Description

Outdoor P8 320mm*160mm SMD LED Display Module Easy Installable Full HD LED Video Board Shenzhen Factory

 Outdoor P8 320mm*160mm SMD LED Display Module Easy Installable Full HD LED Video Board Shenzhen Factory 0
P8 320mm*160mm SMART DIY LED Module -Easy install Play video ,Text,Photo 2Years Guarantee

Applications
P3 Indoor Display HD-LED Video screen 1920Hz Magnet Install Size:5.184m*2.304m

Product Features
* Cabinet Install to the wall,Module magnet service
* Used LED Processor can open 2 windows on the LED Display.
* Power supply and Controller service from the front side.



What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

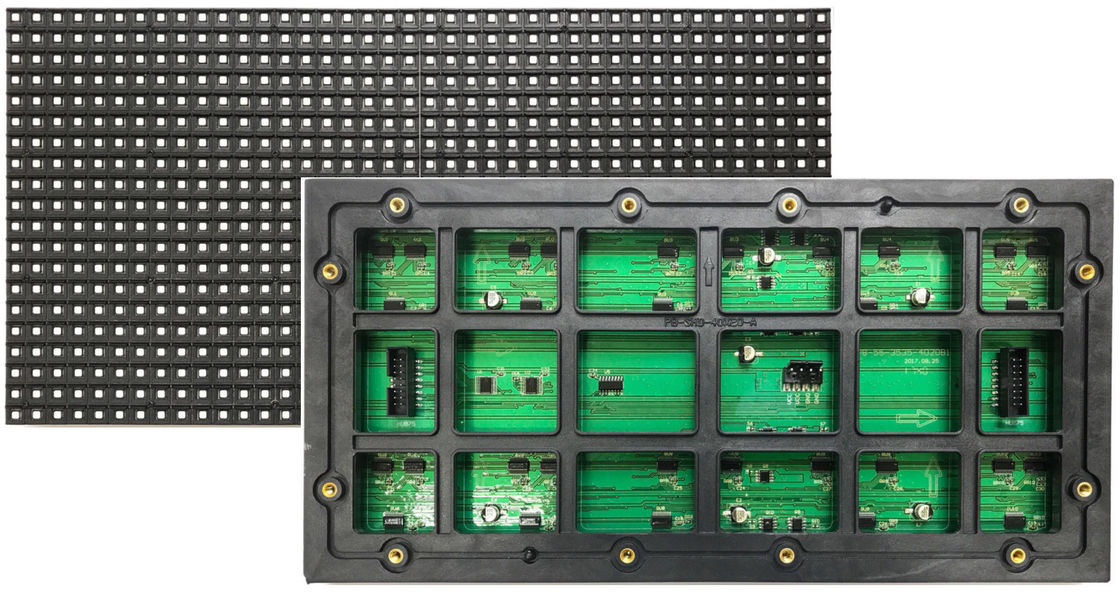

Outdoor P8 320mm*160mm SMD LED Display Module Easy Installable Full HD LED Video Board Shenzhen Factory 2

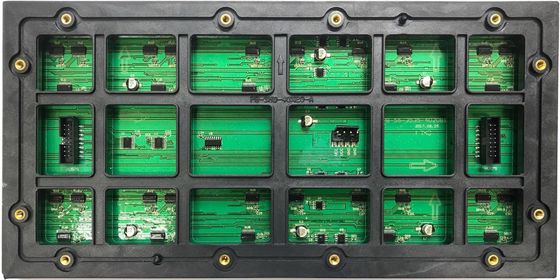

Outdoor P8 320mm*160mm SMD LED Display Module Easy Installable Full HD LED Video Board Shenzhen Factory 3


Parameter:

Pixel pitch 8 mm
LED Lamp type 3in1RGB 2727
Module size 320mmx160mm
Pixels Density 15625 pixel/㎡
Brightness 5000cd/㎡
Scan type 1/5Scan
Frame Rata 60HZ
Maximum consumption 1000W/㎡
Ave power consumption 360W/㎡
Led module weight 9.18kg/㎡
Led display weight(Die-case) 28kg/㎡
Working Temp -20℃ to +60℃
Horizontal View Angel 140degree
IP grade IP33
Cabinet suggest 640*640mm/960*960mm




Module Dimensions:
Outdoor P8 320mm*160mm SMD LED Display Module Easy Installable Full HD LED Video Board Shenzhen Factory 4

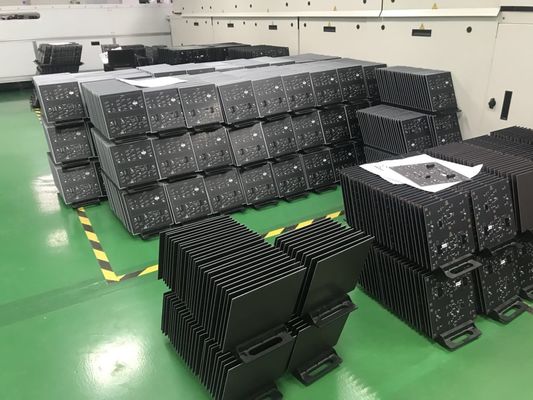

Production line
Outdoor P8 320mm*160mm SMD LED Display Module Easy Installable Full HD LED Video Board Shenzhen Factory 5






Packaging and shipping
Packing:1.Paper box packing and Water proof packing
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.



Outdoor P8 320mm*160mm SMD LED Display Module Easy Installable Full HD LED Video Board Shenzhen Factory 6
