Product Details:

Place of Origin: China
Brand Name: Smart LED
Certification: CE,ROSH,FCC,EMC
Model Number: P4.75 RG

Payment & Shipping Terms:

Minimum Order Quantity: no requirement
Packaging Details: Paper box package
Delivery Time: 2-3 Days
Payment Terms: T/T
Supply Ability: no requirement
Get Best Price Contact Now

Detail Information

Item: P4.75 RG LED Module LED Lamp: SMD 2020
Dot Density: 44321 Resolution: 32*16
Protective Grade: IP33 Refresh Rate: 1920Hz
Brightness: 800mcd Driving Method: 1/16 Scan
Module Weight: 400g Guarantee: 2Years
High Light:

p10 rgb led display module

,

indoor led display module

,

Magnet Install Outdoor SMD LED Display

Product Description

Magnet Install Outdoor SMD LED Display 4.75mm Pixel Pitch High Performance Shenzhen Factory

Magnet Install Outdoor SMD LED Display 4.75mm Pixel Pitch High Performance Shenzhen Factory 0

Hotel Supermarket Use SMD LED Display Module Wide Working Temperature

Applications
P3 Indoor Display HD-LED Video screen 1920Hz Magnet Install Size:5.184m*2.304m

Product Features
* Cabinet Install to the wall,Module magnet service
* Used LED Processor can open 2 windows on the LED Display.
* Power supply and Controller service from the front side.



What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

Magnet Install Outdoor SMD LED Display 4.75mm Pixel Pitch High Performance Shenzhen Factory 2
Magnet Install Outdoor SMD LED Display 4.75mm Pixel Pitch High Performance Shenzhen Factory 3

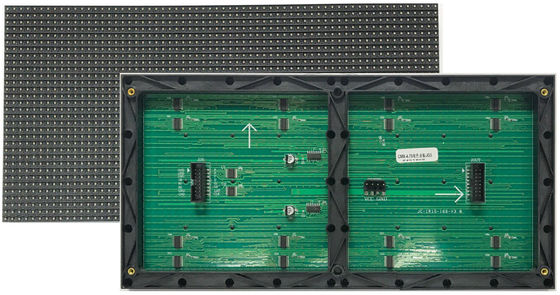

P4.75 SMD indoor RG
Description:
Size: 304mm*152mm
Resolution: 32dots*16dots
Lamp: SMD 2020
Driving Method: 1/16 Scan
Module brightness:5000mcd
Display Fresh requency: 1920Hz
Working environment: Outdoor
Parameter:

Pixel pitch 4.75 mm
LED Lamp type 3in1RGB 2020
Module size 304mmx152mm
Pixels Density 44321 pixel/㎡
Brightness 800cd/㎡
Scan type 1/16 Scan
Frame Rata 60HZ
Maximum consumption 700W/㎡
Ave power consumption 250W/㎡
Led module weight 9.18kg/㎡
Led display weight(Die-case) 28kg/㎡
Working Temp -20℃ to +60℃
Horizontal View Angel 140degree
IP grade IP33
Cabinet suggest 640*640mm/960*960mm




Module Dimensions:
Magnet Install Outdoor SMD LED Display 4.75mm Pixel Pitch High Performance Shenzhen Factory 4

Production line
Magnet Install Outdoor SMD LED Display 4.75mm Pixel Pitch High Performance Shenzhen Factory 5
Magnet Install Outdoor SMD LED Display 4.75mm Pixel Pitch High Performance Shenzhen Factory 6


Magnet Install Outdoor SMD LED Display 4.75mm Pixel Pitch High Performance Shenzhen Factory 7


Packaging and shipping
Packing:1. Paper box packing and Water proof packing
Delivery: Shipping by sea,air or DHL,multiple shipping ways for your choice.
