P2.5 LED Indoor Smart DIY SMD LED Display Module Easy Install Playing Video Text And Photo Shenzhen Factory
Product Details:
| Place of Origin: | China |
| Brand Name: | Smart LED |
| Certification: | CE,ROSH,FCC,EMC |
| Model Number: | P2.5 SMD Indoor |
Payment & Shipping Terms:
| Minimum Order Quantity: | no requirement |
|---|---|
| Packaging Details: | Paper box package |
| Delivery Time: | 2-3 Days |
| Payment Terms: | T/T |
| Supply Ability: | no requirement |
|
Detail Information |
|||
| Item: | P2.5 LED Module | LED Lamp: | SMD 2020 |
|---|---|---|---|
| Dot Density: | 160000 | Resolution: | 128*64 |
| Protective Grade: | IP33 | Refresh Rate: | 1920Hz |
| Brightness: | 1000mcd | Driving Method: | 1/32 Scan |
| Module Weight: | 400g | Guarantee: | 2Years |
| High Light: | p10 rgb led display module,indoor led display module,DIY SMD LED Display Module |
||
Product Description
P2.5 320*160mm SMART DIY LED Module -Easy install Play video ,Text,Photo 2Years Guarantee
Applications
Product Features
* Cabinet Install to the wall,Module magnet service
* Used LED Processor can open 2 windows on the LED Display.
* Power supply and Controller service from the front side.
What we can do
* Project advise,Make the easy project design,easy for install and service
* Free on-line support
* We will send the setting file send with the goods. And also we will keep the Project file.
.
P2.5SMD indoor
Description:
Size: 256mm*128mm
Resolution: 64dots*32dots
Lamp: SMD 2020
Driving Method: 1/32 Scan
Module brightness:1000mcd
Display Fresh requency: 1920Hz
Working environment: Indoor
Parameter:
| Pixel pitch | 2.5 mm |
| LED Lamp type | 3in1RGB 2020 |
| Module size | 320mm*160mm |
| Pixels Density | 160000 pixel/㎡ |
| Brightness | 1000cd/㎡ |
| Scan type | 1/32 Scan |
| Frame Rata | 60HZ |
| Maximum consumption | 700W/㎡ |
| Ave power consumption | 250W/㎡ |
| Led module weight | 9.18kg/㎡ |
| Led display weight(Die-case) | 28kg/㎡ |
| Working Temp | -20℃ to +60℃ |
| Horizontal View Angel | 140degree |
| IP grade | IP33 |
| Cabinet suggest | 512mm*512mm |
Module Dimensions:

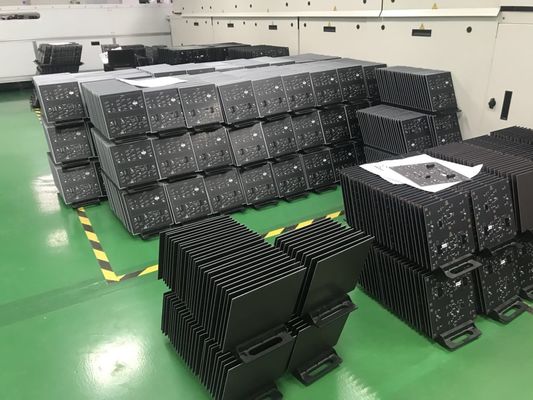

Production line
Certificate
Packaging and shipping
Packing:1.Paper box packing and Water proof packing
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
