Product Details:

Place of Origin: China
Brand Name: Smart LED
Certification: CE,ROSH,FCC,EMC
Model Number: P3

Payment & Shipping Terms:

Minimum Order Quantity: no requirement
Packaging Details: Paper box package
Delivery Time: 2-3 Days
Payment Terms: T/T
Supply Ability: no requirement
Get Best Price Contact Now

Detail Information

Item: P3 LED Module LED Lamp: SMD 2020
Dot Density: 111111 Led Resolution: 64*64
Module Size: 192mm*192mm Refresh Rate: 1920Hz
Brightness: 1000mcd Driving Method: 1/32 Scan
Module Weight: 450g Guarantee: 2Years
High Light:

p10 rgb led display module

,

indoor led display module

,

Portable Advertising SMD LED Display Module

Product Description

P3 LED Indoor Commercial Portable Advertising SMD LED Display Module Wall Mounted For Business Shenzhen Factory

P3 LED Indoor Commercial Portable Advertising SMD LED Display Module Wall Mounted For Business Shenzhen Factory 0

P3 192mm*192mm SMART DIY LED Module 215pcs-Easy install Play video ,Text,Photo 2Years Guarantee



Applications

P3 Indoor Display HD-LED Video screen 1920Hz Magnet Install Size:5.184m*2.304m



Product Features

* Cabinet Install to the wall,Module magnet service

* Used LED Processor can open 2 windows on the LED Display.

* Power supply and Controller service from the front side.



What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.







     P3 LED Indoor Commercial Portable Advertising SMD LED Display Module Wall Mounted For Business Shenzhen Factory 2    P3 LED Indoor Commercial Portable Advertising SMD LED Display Module Wall Mounted For Business Shenzhen Factory 3

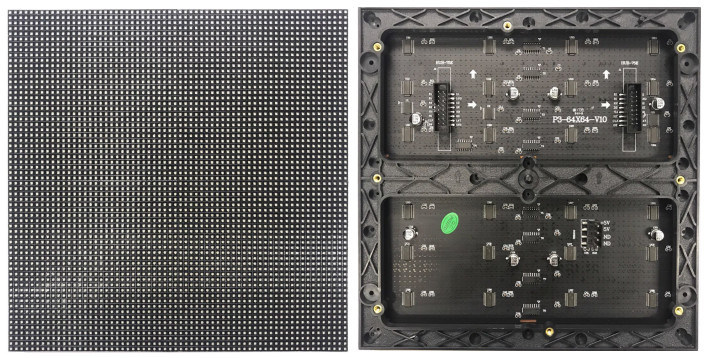

P3 SMD indoor

Description:

Size: 192mm*192mm

Resolution: 64dots*64dots

Lamp: KINGLIGHT 2020

Driving Method: 1/32 constant current

Drive IC:ICN2038S

Module brightness:1000mcd

Display Fresh requency: 1920Hz

Working environment: Indoor

Parameter:

Pixel pitch 3 mm
LED Lamp type 3in1RGB 2020
Module size 192mmx192mm
Pixels Density 111111 pixel/㎡
Brightness 1000cd/㎡
Scan type 1/32scan
Frame Rata 60HZ
Maximum consumption 700W/㎡
Ave power consumption 250W/㎡
Led module weight 9.18kg/㎡
Led display weight(Die-case) 28kg/㎡
Working Temp -20℃ to +60℃
Horizontal View Angel 140degree
IP grade IP33
Cabinet suggest 960*960mm,576*576mm







Module Dimensions:

P3 LED Indoor Commercial Portable Advertising SMD LED Display Module Wall Mounted For Business Shenzhen Factory 4



Production line

P3 LED Indoor Commercial Portable Advertising SMD LED Display Module Wall Mounted For Business Shenzhen Factory 5

P3 LED Indoor Commercial Portable Advertising SMD LED Display Module Wall Mounted For Business Shenzhen Factory 6





P3 LED Indoor Commercial Portable Advertising SMD LED Display Module Wall Mounted For Business Shenzhen Factory 7





Certificate



P3 LED Indoor Commercial Portable Advertising SMD LED Display Module Wall Mounted For Business Shenzhen Factory 8P3 LED Indoor Commercial Portable Advertising SMD LED Display Module Wall Mounted For Business Shenzhen Factory 9

P3 LED Indoor Commercial Portable Advertising SMD LED Display Module Wall Mounted For Business Shenzhen Factory 10P3 LED Indoor Commercial Portable Advertising SMD LED Display Module Wall Mounted For Business Shenzhen Factory 11



Packaging and shipping

Packing:1.Paper box packing and Water proof packing
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.



 P3 LED Indoor Commercial Portable Advertising SMD LED Display Module Wall Mounted For Business Shenzhen Factory 12

P3 LED Indoor Commercial Portable Advertising SMD LED Display Module Wall Mounted For Business Shenzhen Factory 13
