P4 Outdoor LED Video Screen
Product Details:
Place of Origin: | China |
Brand Name: | SMART LED |
Certification: | CE,ROSH,FCC,EMC |
Model Number: | P4 SMD Outdoor Display |
Payment & Shipping Terms:
Minimum Order Quantity: | no requirement |
---|---|
Packaging Details: | Wooden package |
Delivery Time: | 15Days-20Days |
Payment Terms: | T/T |
Supply Ability: | no requirement |
Detail Information |
|||
Item: | P4 SMD Outdoor Display | LED Lamp: | SMD 1921 Kinglight Lamp |
---|---|---|---|
Dot Density: | 62500 | Resolution: | 64*32 |
Protective Grade: | IP54 | Refresh Rate: | >1920Hz |
Brightness: | 6000mcd | Cabient Materials: | Iron |
High Light: | P4 Outdoor LED Video Screen,2688x288 Outdoor LED Video Screen,P4 Outdoor LED Screen Display |
Product Description

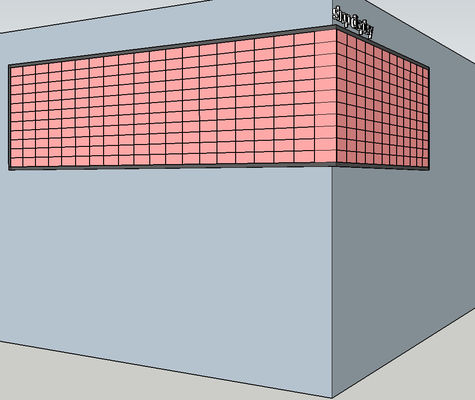

Opposite LED display P4 6144mm+4608mm*1152mm Resolution:2688*288
SPECIFICATION
Model.PN NO: P4 SMD OUTDOOR MODULE-256*128MM 8s
REV NO:V1.0
Description:

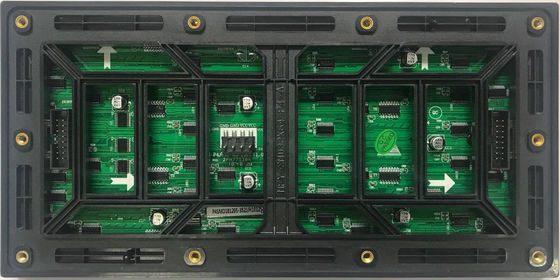

■ 256*128mm SMD Outdoor module
■ Lamp:HS-C1921FCEWH
■ Driver IC:ICN2037
Shenzhen LCS Electronic Co.,Ltd | ||
Technology department |
Quality department |
Marketing department |
P4 SMD outdoor
Description:
Size: 256mm*128mm (10”x 5”)
Resolution: 32dots*16dots
Drive IC: ICN2037
Display Function: Video, Message
Working environment: Outdoor
Parameter:
Pixel pitch | 4mm |
LED Lamp type | SMD1921 |
LED composing | 1RGB |
Module size | 256mmx128mm |
Module pixel | 64*32 led |
Pixels Density | 62500 pixel/㎡ |
Module Scan | 1/8 Scan |
Brightness | 6000cd/㎡ |
Power input | 5V |
Input Amp | 7.2A |
Operating Temperature | -20℃~60℃ |
Ave power consumption | 25W |
Port type | HUB75 |
Horizontal View Angel | >140degree |
Working Temp | -20℃ to +60℃ |
N.W. | 500g |
G.W. | 500g |
IP grade | IP65 |
Effect | Video, Message |
Dimensions:
Package:
● Box size:585*410*330mm
● Package quantity:60PCS
● Weight:20.54Kg
