HD LED Sphere Display SMD 2020 Curved Led Screen 1000mcd High Brightness

HD LED Sphere Display SMD 2020 Curved Led Screen 1000mcd High Brightness

Product Details:

Place of Origin: Shenzhen,China
Brand Name: SMART LED
Certification: CE,ROSH,FCC
Model Number: P4 Indoor LED Pillar

Payment & Shipping Terms:

Minimum Order Quantity: no requirement
Packaging Details: Wooden package,
Delivery Time: 15 Days
Payment Terms: T/T
Supply Ability: no requirement
Get Best Price Contact Now

Detail Information

Item: P4 SMD Indoor Flexible LED Lamp: SMD 2020
Dot Density: 62500 Led Driving Method:: 1/16 Scan
Cabinet Size: Diameter Cabinet Resolution: 768*768
Protective Grade: IP33 Refresh Rate: >1920Hz
Brightness: 1000mcd Cabinet Materials: Iron+Plastic
High Light:

curved led screen

,

flexible led display screen

Product Description

HD LED Sphere Display SMD 2020 Curved Led Screen 1000mcd High Brightness

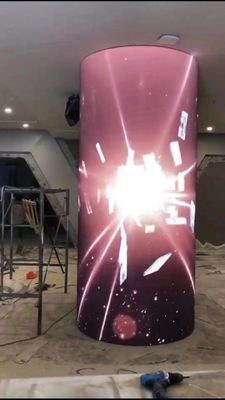

P4 Indoor HD-LED Video Pillar Diameter: 1m High: 3.072m Flexible P4



Applications
P3 Indoor Display HD-LED Video screen 1920Hz Magnet Install Size:5.184m*2.304m

Product Features
* Cabinet Install to the wall,Module magnet service
* Used LED Processor can open 2 windows on the LED Display.
* Power supply and Controller service from the front side.



What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.




   HD LED Sphere Display SMD 2020 Curved Led Screen 1000mcd High Brightness 1PH4mm LED SMD Indoor Display Specification
Technicial Parameters
LED Parameters
No. Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
1 Red LED (Epistar DICE) 800-1000 140º/70º 620-630nm 25℃,20mA
2 Green LED(Epistar DICE) 1300~1500 140º/70º 520-535nm 25℃,20mA
3 Blue LED (Epistar DICE) 250~500 140º/70º 465-475nm 25℃,20mA
Module Specifications
1 Pixel Pitch 4mm                                                                  HD LED Sphere Display SMD 2020 Curved Led Screen 1000mcd High Brightness 2
2 Pixel Configuration 3-in-1, SMD 2020
3 Module Resolution 64 X 32
4 Module Pixles  2048
5 Module Size 256mm X 128mm
6 Module power 5V3.6A 18W
Cabinet Specification
1 Cabinet Size(WXHXD)  Diameter 1m high:1.024m             HD LED Sphere Display SMD 2020 Curved Led Screen 1000mcd High Brightness 3
2 Cabinet Resolution 384*256
3 Module Quanity 48 pcs
4 Cabinet Pixels 98304 dots
5 Pixel Density 62500 dots/m2
6 Average Power Consumption 360W/cabinet
7 Max. Power Consumption 1200W/cabinet
8 Material Iron
9 Cabinet Weight 53 KG/Half size
10 Protective Grade IP33
Screen Parameters
1 Whole screen size Diameter 1m high:3.072m  HD LED Sphere Display SMD 2020 Curved Led Screen 1000mcd High Brightness 4



2 LED Display piexl 768 * 768
2 Cabinet quantity 6 pcs
3 Brightness ≥1000 mcd/㎡
4 Brightness(Max./Min.) 1.2:1
5 Driving Method 1/16 Scan
6 View Angle Horizontal 140° Vertical 120°
7 Optimal Viewing Distance 5M
8 Brightness Control Red,Green and Blue 256 Grade/Each
9 Refresh rate >19200HZ
10 Frame Frequency 60Hz
11 Input Voltage AC220V/50Hz or AC110V/60Hz
12 Defects Rate ≤0.00001
13 Power Consumption Max.: 800W/㎡
Average: 300W/㎡
14 Screen weight ≤28.6kg/㎡
15 MTBF >10,000 hours
16 Life span ≥100,000 hours
17 Module Display Brightness Uniformity <2%
18 Earth Leakage Current <3mA
19 Protective Grade IP33
20 Temperature-operating ﹣25℃~45℃
21 Humidity-operating 10%~95%
22 Controlling system Nova
23 Operating System WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included.
2. 30% Down Payment before Production, Balance before shippment
3. Lead time:15 working Days against down Payment
4. Two Years Maintain Replacement free.



Out Producing department
HD LED Sphere Display SMD 2020 Curved Led Screen 1000mcd High Brightness 5


Project Install
HD LED Sphere Display SMD 2020 Curved Led Screen 1000mcd High Brightness 6

HD LED Sphere Display SMD 2020 Curved Led Screen 1000mcd High Brightness 7



Packaging and shipping
Packing:1.Wooden case
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
HD LED Sphere Display SMD 2020 Curved Led Screen 1000mcd High Brightness 8

HD LED Sphere Display SMD 2020 Curved Led Screen 1000mcd High Brightness 9
