Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption

Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption

Product Details:

Place of Origin: SHENZHEN,China
Brand Name: Smart LED
Certification: CE,ROSH,FCC,EMC
Model Number: P6

Payment & Shipping Terms:

Minimum Order Quantity: no requirement
Packaging Details: Paper box package
Delivery Time: 2-3 Days
Payment Terms: T/T
Supply Ability: no requirement
Get Best Price Contact Now

Detail Information

Item: P6 LED Module LED Lamp: SMD 3535
Module Size: 192mm*192mm Resolution: 32*32
Protective Grade: IP65 Refresh Rate: 1920Hz
Brightness: 1000mcd Driving Method: 1/8 Scan
Module Weight: 500g Guarantee: 2Years
High Light:

p6 outdoor led module

,

indoor led display module

Product Description

Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption



P6 192*192mm Outdoor 720PCS SMART DIY LED Module -Easy install Play video 2Years Guarantee



Applications

P3 Indoor Display HD-LED Video screen 1920Hz Magnet Install Size:5.184m*2.304m



Product Features

* Cabinet Install to the wall,Module magnet service

* Used LED Processor can open 2 windows on the LED Display.

* Power supply and Controller service from the front side.



What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.







    Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption 1    Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption 2



P6 SMD outdoor

Description:

Size:192mm*192mm(7.56”x 7.56”)

Resolution:32dots*32dots

Drive IC: MBI5124

Display Function: Video ,Message

Working environment: Outdoor

Parameter:



Pixel pitch 6 mm
LED Lamp type SMD 3535
LED composing 1RGB
Module size 192mmx192mm
Refresh 1920Hz
Pixels Density 27778 pixel/㎡
Module scan 1/8 scan
Brightness 6500mcd
Power input 5V
Input Amp 6A
Operating Temperature -20℃~60℃
Ave power consumption 30W
Port type HUB75
Horizontal View Angel >110degree
Working Temp -20℃ to +60℃
N.W. 465g
IP grade IP65
Order quanatity 720pcs

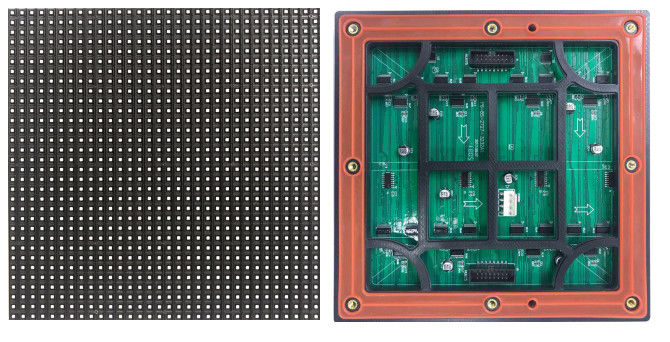

Structure chart:

Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption 3

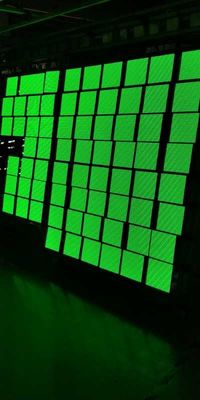

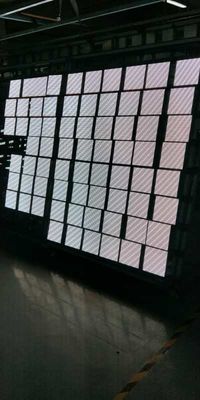

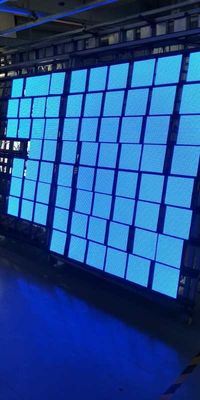

Production line

Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption 4

Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption 5





Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption 6





Certificate



Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption 7Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption 8

Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption 9Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption 10



Packaging and shipping

Packing:1.Paper box packing and Water proof packing
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.



 Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption 11

Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption 12

Three In One RGB P6 Full Color SMD LED Module 30W Low Ave Power Consumption 13
