Magnet Install LED Wall Display Screen 1920Hz High Refresh And High Strength Shenzhen Factory

Magnet Install LED Wall Display Screen 1920Hz High Refresh And High Strength Shenzhen Factory

Product Details:

Place of Origin: China
Brand Name: SMART LED
Certification: CE,ROSH,FCC
Model Number: P4 Indoor LED Display

Payment & Shipping Terms:

Minimum Order Quantity: no requirement
Packaging Details: Wooden package,
Delivery Time: 12 Days
Payment Terms: T/T
Supply Ability: no requirement
Get Best Price Contact Now

Detail Information

Item: P4 SMD Indoor Full Color LED Lamp: SMD 2020
Dot Density: 62500 Led Driving Method:: 1/16 Scan
Module Size: 256*128mm Module Resolution: 64*32
Protective Grade: IP33 Refresh Rate: >1920Hz
Brightness: 1000mcd Project Loction: Hunan China
High Light:

led video wall panels

,

led video wall screen

,

Magnet Install LED Wall Display Screen

Product Description

Magnet Install LED Wall Display Screen 1920Hz High Refresh And High Strength Shenzhen Factory 0

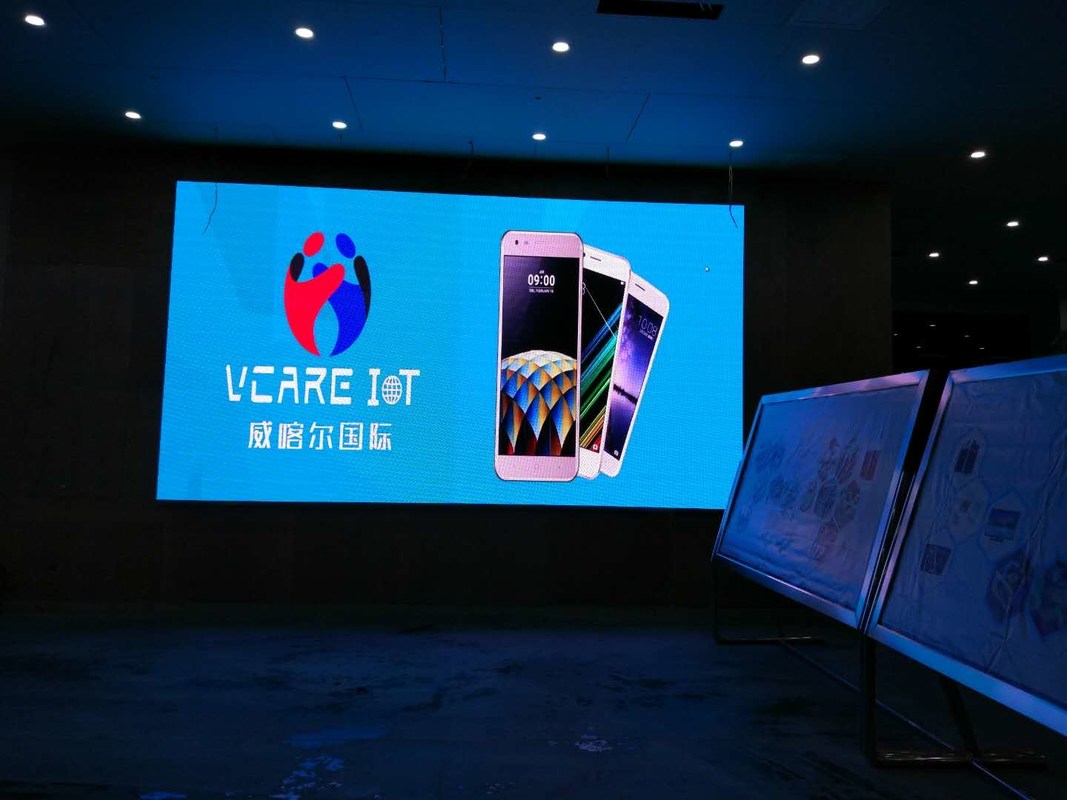

P4 Indoor HD-LED Video screen Size:5.632m*3.072m 1920Hz Magnet Install



Applications

Magnet Install LED Wall Display Screen 1920Hz High Refresh And High Strength Shenzhen Factory 1



Product Features

* Cabinet Install to the wall,Module magnet service

* High Refresh:1920Hz

* Power supply and Controller service from the front side.



What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.





    Magnet Install LED Wall Display Screen 1920Hz High Refresh And High Strength Shenzhen Factory 2      Magnet Install LED Wall Display Screen 1920Hz High Refresh And High Strength Shenzhen Factory 3



   Magnet Install LED Wall Display Screen 1920Hz High Refresh And High Strength Shenzhen Factory 4PH4mm LED SMD Indoor Display Specification
Technicial Parameters
LED Parameters
No. Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
1 Red LED (Epistar DICE) 800-1000 140º/120º 620-630nm 25℃,20mA
2 Green LED(Epistar DICE) 1300~1500 140º/120º 520-535nm 25℃,20mA
3 Blue LED (Epistar DICE) 250~500 140º/120º 465-475nm 25℃,20mA
Module Specifications
1 Pixel Pitch 4mm  Magnet Install LED Wall Display Screen 1920Hz High Refresh And High Strength Shenzhen Factory 5
2 Pixel Configuration 3-in-1, SMD 2020
3 Module Resolution 64dots X 32dots
4 Module Pixles 2048dots
5 Module Size 256mm X 128mm
6 Module power 5V3.6A 18W
Screen Parameters
1 Whole screen size 5.632mx3.072m = 17.3 sqm

 Magnet Install LED Wall Display Screen 1920Hz High Refresh And High Strength Shenzhen Factory 6


 Magnet Install LED Wall Display Screen 1920Hz High Refresh And High Strength Shenzhen Factory 7


 Magnet Install LED Wall Display Screen 1920Hz High Refresh And High Strength Shenzhen Factory 8

2 LED Display piexl 1408 * 768
2 Cabinet quantity 22pcs*24pcs =528 pcs
3 Brightness ≥1000 mcd/㎡
4 Brightness(Max./Min.) 1.2:1
5 Driving Method 1/16 constant current
6 View Angle Horizontal 140° Vertical 120°
7 Optimal Viewing Distance 3M
8 Brightness Control Red,Green and Blue 256 Grade/Each
9 Refresh rate >1920HZ
10 Frame Frequency 60Hz
11 Input Voltage AC220V/50Hz or AC110V/60Hz
12 Defects Rate ≤0.00001
13 Power Consumption Max.: 800W/㎡
Average: 300W/㎡
14 Screen weight ≤20kg/㎡
15 MTBF >10,000 hours
16 Life span ≥100,000 hours
17 Module Display Brightness Uniformity <2%
18 Earth Leakage Current <3mA
19 Protective Grade IP33
20 Temperature-operating ﹣25℃~45℃
21 Humidity-operating 10%~95%
22 Controlling system LINSN
23 Operating System WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included.
2. 30% Down Payment before Production, Balance before shippment
3. Lead time:15 working Days against down Payment
4. Two Years Maintain Replacement free.



Ship package

Magnet Install LED Wall Display Screen 1920Hz High Refresh And High Strength Shenzhen Factory 9
